Specifications

Optical

Panel Size		1-Chip DLP 17mm (0.67")
Light Source		Laser
Resolution		WUXGA (1920 x 1200)
Light Output (Brightness) ANSI Lumens		10,000 (Normal)
Contrast Ratio		30,000:1
Lens		Interchangeable, not included
System Life (Hours)		20,000
Lens Zoom		Powered Zoom x 1.5 (using SD-903)
Lens Focus		Powered Focus
Lens Shift		Powered Lens Shift
Throw Distance		1.8 - 21.4m (WIDE) / 2.7 - 31.9m (TELE) (using SD-903)
Distance to Width Ratio/ Throw Ratio (:1)		FL-920 Throw 0.38; USL-901A Throw 0.8 - 1.0; SL-902 Throw 1.1 - 1.7; SD-903 Throw 1.6 - 2.4; ML-904 Throw 2.4 - 3.6; LL-905 Throw 3.5 - 5.6; UL-906 Throw 5.5 - 8.8
Diagonal Display Size		50 - 600" (using SD-903)

Features

Speakers		Not supported
Digital Keystone Correction		Horizontal ±60°, Vertical ±40°

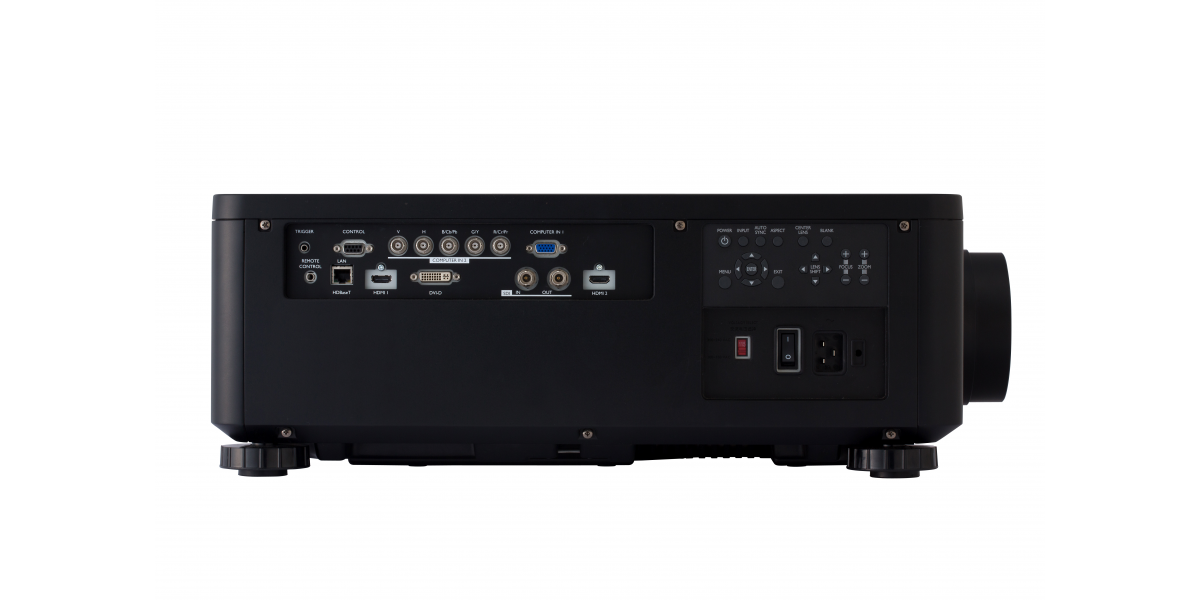

Connections

Digital Input		HDMI x 2, DVI-D x 1, SDI BNC x 1, HDBaseT x 1
Analogue Input		15-pin D-Sub shrink x 1, 5 BNC x 1
Video Output		SDI BNC x 1
Audio Input		Not supported
Audio Output		Not supported
RS-232C Control		1 x 9-pin D-Sub
Wireless LAN		No
Wired LAN		RJ45 connector x 1 (shared with HDBaseT)
USB Type A		Not supported
USB Type B		Not supported

Power

Power Supply		AC 100V – 130V (50/60Hz), AC 200V – 240V (50/60Hz)
Operating Power Consumption		1240W
Standby Power Consumption		Less than 0.5W

Physical

Weight		28kg (without lens)
Dimensions (W x H x D) (Without feet)		500 x 216 x 576 mm
Noise		42db (Normal), 39db (Eco)

Accessories

Supplied Accessories		Power cord: US cord for 125V (2.5m) x 1, US cord for 250V (2.5m) x 1, EURO cord (2.5m) x 1, Remote Control unit x 1, RS232C cable (Cross, Male to Male) x 1, RGB cable (1.8m) x 1
Optional Accessories		FL-920 (Ultra Short Throw Lens), USL-901A (Short Throw Lens), SL-901 (Short Throw Lens), SD-903 (Standard Throw Lens), ML-904 (Middle Throw Lens), LL-905 (Long Throw Lens), UL-906 (Ultra Long Throw Lens)
Remote Control		HL02806
Warranty		10,000 hours / 5 years (whichever comes first) (for extended warranty please contact your local dealer)
