Display Device

0.65" (16:9 aspect ratio) 1 x DLP

Resolution

1920 x 1080

Brightness

9500 ANSI Lumens (Normal Mode) / 7125 ANSI Lumens (Eco Mode)

Contrast Ratio

2500:1

Lens

Interchangeable, Powered Zoom, Powered Focus, Lens shift

Lamp Wattage

430W Dual (Normal Mode) / 322W Dual (Eco Mode)

Lamp Life

2000 hours (Normal Mode)/4000 hours (Eco Mode)*

Distance to width ratio (:1)

1.6 (WIDE), 2.4 (TELE) (Standard Lens SD-903 not included)

Diagonal Display Size

50"~600" (100" at 3.5m, wide max.)

Number of colours

16.7 million colours

Keystone

Lens FL-910 Vertical ±3.5°, Horizontal ±3.5° Lens SL-902 Vertical ±10.0°, Horizontal ±10.0° Lens ML-904 Vertical ±15.0°, Horizontal ±15.0° Lens UL-906 Vertical ±17.5°, Horizontal ±17.5° Lens USL-901 Vertical ±7.5°, Horizontal ±7.5° Lens SD-903 Vertical ±12.5°, Horizontal ±12.5° Lens LL-905 Vertical ±15.0°, Horizontal ±15.0°

Computer compatibility

IBM Compatible VGA, SVGA, XGA, WXGA/WXGA+/SXGA/SXGA+/WSXGA+/UXGA/WUXGA (compressed), MAC16"

Composite/S-Video

NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

Component Video

525i(480i), 525p(480p), 625i(576i), 625p (576p), 1125i(1080i@50/60), 1125p(1080p@50/60), 750p(720p@50/60)

HDMI/HDBaseT/SDI

525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)

Basic functions

Auto signal search & Source skip,Frame Lock,Image blank by RS232C/Remote control LED lamps (Filter, Shutter, Security, Lamp-1, Lamp-2, Temp, Power),Mechanical shutter, Magnify, Mirror Reverse Image, Up-side Down Image, Freeze, Serial number displayed on EASY MENU and on the side of projector, Status monitoring by sub LCD

Picture Adjustments

Bright/Rich Colour, Accentualizer and HDCR, Equalizing Colour temperature adjustment, Equalizing Digital Gamma Correction, Picture mode (Standard, Natural, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, DICOM Simulation, User-1, User-2, User-3), Resolution setting, Video noise reduction, Mirror Reverse Image, Up-side Down Image, My Button by Remote control, My Memory, My source, My Text, MyScreen

Digital Keystone Correction

Horizontal, Vertical: ±10 degrees

Advanced Features

360 degree installation angle, Active Iris,Blending/Cropping,Filter timer / selectable interval time to show the message for air filter cleaning,Image blank by RS232C/Remote control,Lens memory (Lens shift position, Lens type) MAC address displayed on the side of projector,Magnify 4 times (XGA) by RS232C/ Remote control, Mechanical shutter, Overscan (Video, Component video signal), Perfect Fit (4 corners), capable of saving/loading the setup, Picture by Picture/Picture in Picture, Magnify 4 times (XGA) by RS232C/Remote control, Portrait projection,Resolution setting,Warping and Blending Simultaneously, Scheduling features, 24/7 Dual Lamp mode

Power on & off

Auto Power off, Direct power on, Eco mode

Security Systems

PIN Security Lock, MyScreen Password Lock, My Text Password Lock, Lens Lock, Key Lock (Key pad, Remote Control)

Network

AMX Device Discovery, Command Control via the Network, Configuring and Controlling the Projector via a Web Browser, Controlling the Projector via Scheduling Crestron RoomView® (Not accessible through the wireless adapter), Displaying text data transferred via network, Extron XTP system, Failure and Warning Alerts via E-mail, My Image (still image transfer) Display, Network Bridge, Network Presentation (PC still picture transfer), Frame rate (practical) is under 12fps (640x480 movie) reference purpose only, PJLinkTM, Projector Management via SNMP

OSD Languages

33

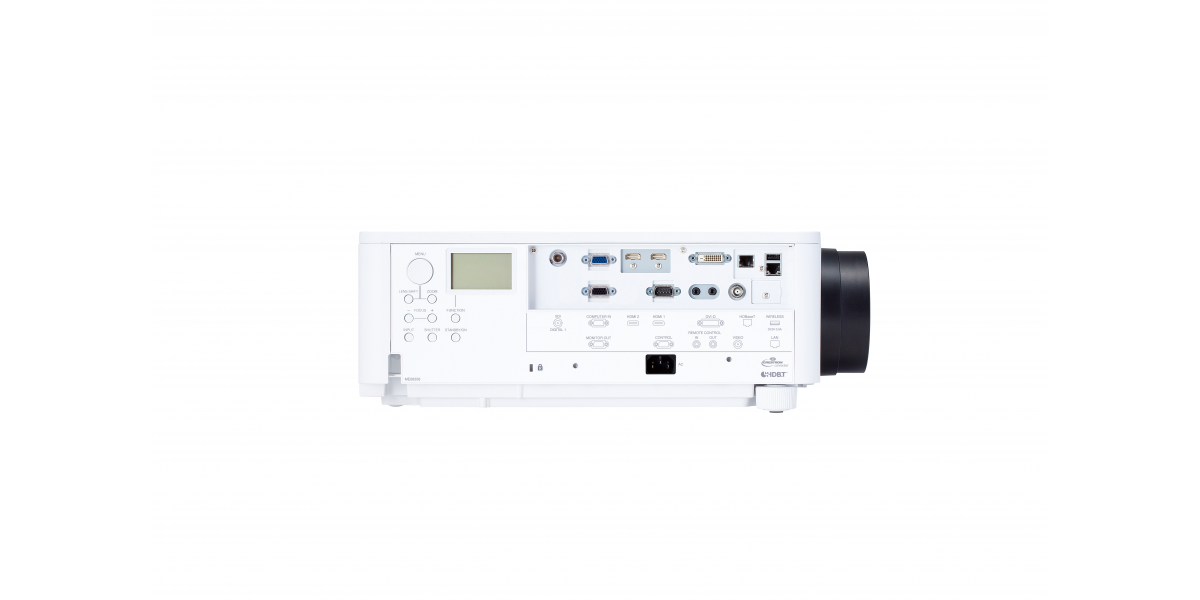

HDMI Input

2 x HDMI (HDCP Compliant)

Computer Input

15-pin D-sub x 1

Computer output

1 x 15-pin Mini D-sub

DVI-D input

1 x DVI-D

SDI

1x SDI input

HD Base T

1x HD Base T input

Composite video (RCA jack)

1 x BNC

Control

1 x RS-232C

USB T ype A

1

Wired Remote Control

1 x 3.5mm

Wired network

Wired LAN (RJ45)

Wireless network

Wireless LAN (USB WLAN Dongle, USB A) Optional

Power Supply

110-120V AC 10.2A / 220-240V AC 5.6A

Power Consumption/Standby

110-120V AC 1090W / 220-240V AC 1070W / Standby 0.5W

Dimensions (W x H x D) (Without feet)

537 x 505 x 170mm (with SD-903 lens) / 537 x 438 x 170mm (without lens)

Weight

17.9kg (with standard lens) / 17.1kg (without lens)

Noise Level

37dB / 32dB (whisper mode)

Air Filter

Hybrid (up to 15,000 hours)

Accessories Supplied

Remote Control HL02804, Power cord: US cord (3m) x 1, Euro cord (3m) x 1, Computer Cable (2m) x 1, Wireless USB Cover x 1, Wireless Remote Control Unit x 1, Ferrite core and Band x 2, Cable tie, AA Batteries x 2, Security Label x 1, Application CD x 1, User’s Manual CD (Safety Guide, Quick Setup Guide, Network Quick Setup Guide, Operating Guide, Instant Stack Guide, Network Guide, ) x1, User’s Manual (Concise) x1

Optional Accessories

USB Wireless adaptor USB-WL-11N, Lamp DT01911, Filter set UX39551
