เทคโนโลยี่ : DLP
ความละเอียด : WUXGA
ความสว่าง : 8,500 Lumes
ความคมชัด : 2,500:1
ขนาด : 53.7 x 17 x 43.8 ซม.
น้ำหนัก : 16.6 กิโลกรัม
เพิ่มเติมOptical | ||
Display Device | 0.67" (17mm) DLP® x 1 | |
Resolution | WUXGA (1920 x 1200) | |
Brightness | 8500 ANSI Lumens | |
Contrast Ratio | 2500:1 | |
Standard Lens | Lens not supplied (see optional lenses) | |
Zoom | Motorised | |
Focus | Motorised | |
Lens Shift | Motorised (V, H) | |
Lamp Wattage | 370W UHP | |
Diagonal Display Size | 50"~600" (1.27m~15.24 m) | |
Lamp Life | 2000 hours (Normal Mode)/4000 hours (Eco Mode)* | |
Distance to width ratio | 1.7~2.5 | |
Compatibility | ||
Computer compatibility | VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, WSXGA+, UXGA, WUXGA (compressed), MAC16" | |
Composite/S-Video | NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43 | |
Component Video/HDMI | 525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60) | |
Features | ||
Picture Adjustments | Perfect Fit, Memory function (lens shift, zoom, focus) | |
Advanced features (9 Series) | Accentualizer technology, DICOM simulation, Instant stack, Mechanical shutter, Picture by Picture/Picture in Picture, Status monitor, Advanced image processing, HDCR (High Dynamic Contrast Range), Edge blending, Warping, iOS Connectivity, Built-in dual colour wheel, HD Base T, Dual lamp | |
Network | AMX Device Discovery, Crestron RoomView® (not accessible through the wireless adaptor) | |
OSD Languages | 33 | |

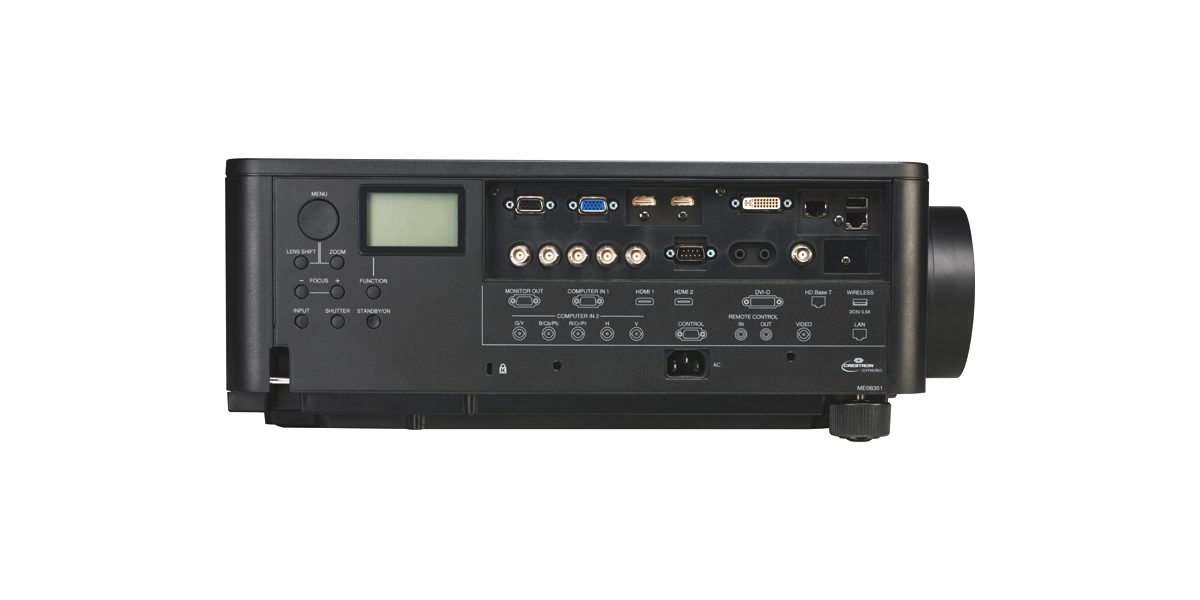

Connections | ||
Digital Input | 2 x HDMI | |
DVI-D input | 1 x DVI-D | |
HD Base T | 1 x RJ-45 | |
Computer Input | 1 x 15-pin Mini D-sub, 1 x 5 BNC | |
Monitor output | 15-pin Mini-D-sub x 1 | |
Video Input | 1 x BNC | |
Control | 1 x 9-pin D-sub for RS-232C | |
USB | 1 x USB type A | |
Wireless network | IEEE802.11b/g/n (Optional USB wireless adaptor is required) | |
Wired remote control (in/out) | 1 x Stereo mini jack/1 x Stereo mini jack | |
Power | ||
Power Supply | 100-120V/220-240V, auto switching | |
Power Consumption/Standby | 990W/<0.5W (AC 220~240V) | |
Physical | ||
Dimensions (W x H x D) (Without feet) | 537 x 170 x 438mm (excluding feet and extrusions) | |
Weight | 16.6Kg (without lens) | |
Noise Level | 36dB (Normal Mode)/29dB (Eco Mode) | |
Operating Temperature | 0~50°C, 45~50°C: operated in Eco Mode only | |
Air Filter | Hybrid (up to 15,000 hours) | |
Optional Accessories | ||
Lamp | DT01581 | |
Filter | UX39621 | |
Ultra short throw lens | USL-901 | |
Short throw lens | SL-902 | |
Standard lens | SD-903W | |
Long throw lens | LL-905 | |
Ultra long throw lens | UL-906 | |
Mounting accessories | HAS-204L (standard adapter for fixing mount) HAS-304H (fixing adapter for higher ceilings) | |
USB wireless adaptor | USB-WL-11N | |
Middle Throw Lens | ML-904 | |
Warranty | ||
Projector warranty | 3 Years | |
Lamp warranty | 6 Months** | |
Lamp warranty ( education ) | For education and extended warranties please contact your local dealer | |
disclaimer 3years /6 months | *The stated lamp and filter life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps and filters should achieve this figure. **Where a lamp fails within warranty and a replacement lamp is taken, the warranty for the replacement lamp will be a maximum of 6 months (dependent on warranty hours stated). |
