Panel Size

3LCD 16mm (0.63")

Resolution

XGA (1024 x 768)

Light Output (Brightness) ANSI Lumens

2500 (Normal), 2050 (Eco), 1675 (Eco-2)

Contrast Ratio

2000:1

Lamp Life (Hours)

5000 (Normal), 8000 (Eco), 10000 (Eco-2)

Lens

Built-in

Lens Zoom

Digital Zoom x 1.35

Lens Focus

Manual Focus

Throw Distance

0.691 - 1.838m

Distance to Width Ratio/ Throw Ratio (:1)

0.6

Diagonal Display Size

60-100"

Digital Keystone Correction

Vertical: ±5°

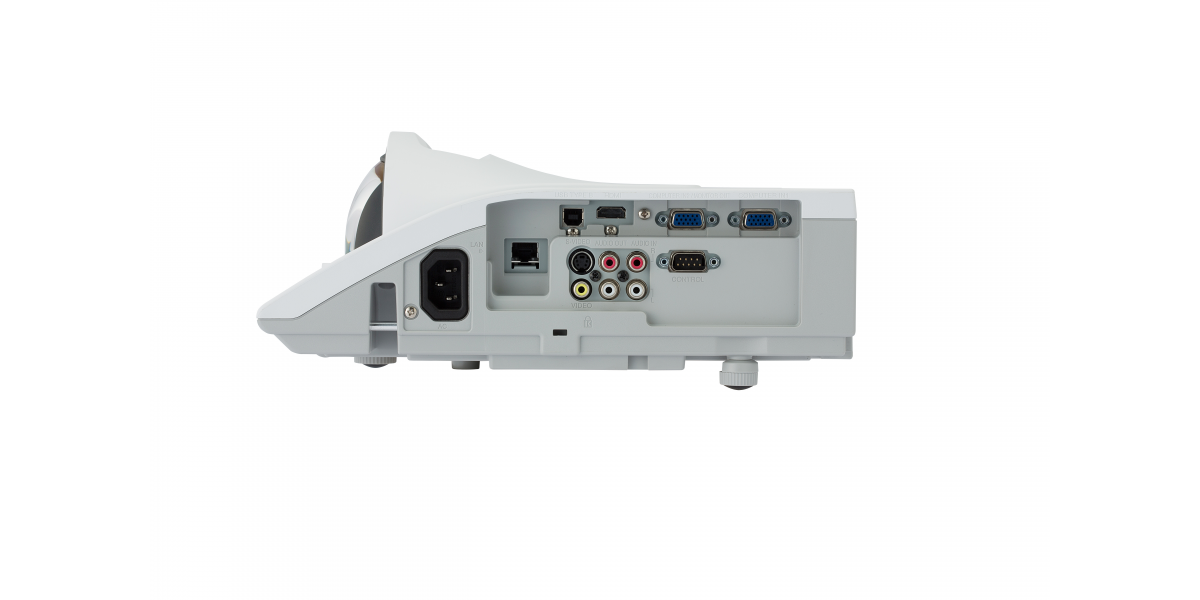

Digital Input

HDMI x 1

Analogue Input

15 pin Mini D-sub x 2, Mini-Din 4 pin x 1, RCA Jack x 1

Video Output

15 pin Mini D-Sub x 1

Audio Input

RCA Jack (L/R) x1

Audio Output

RCA Jack (L/R) x1

RS-232C Control

1 x 9-pin D-Sub

Wireless LAN

No

Wired LAN

Yes

USB Type A

No

USB Type B

Used for remote control mouse

Power Supply

AC 100V-120V / AC 220V-240V (50/60Hz)

Operating Power Consumption

290W

Standby Power Consumption

Less than 0.35W

Weight

3.4Kg

Dimensions (W x H x D) (Without feet)

345 x 85 x 303mm

Noise

36dB (Normal), 32dB (Eco), 29dB (Eco-2)

Filter Life (Hours)

4000

Computer

IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+/ SXGA/ SXGA+/ UXGA (compressed), MAC16"

Video

525i (480i), 525p (480p), 625i (576i), 1125i (1080i@50/60), 750p (720p@50/60), 1125p (1080p@50/60)

Supplied Accessories

Power Cable (1.8m) x1, Computer Cable (2m) x1, Lens Cap x1, IR Remote Control Unit x1, AA Batteries x2, Application CD (for network, etc.) x1, CD User Manual x1, Concise User Manual x1, USB Wireless Adapter Cover x1

Optional Accessories

USB wireless adaptor USB-WL-11N. Wireless pen tablet TB-1 is optional.

Remote Control

HL03035

Replacement Lamp / Filter

DT01511

Projector/ Lamp Warranty

3 years / 3 years (for education and extended warranties please contact your local dealer)
