LCD Panel

16 mm (0.63 inch) 3LCD Panel

Resolution

XGA (1024 x 768)

Brightness

2700 ANSI Lumens (Normal), 2010 ANSI Lumens (Eco-2)

Colour light output (colour brightness)

2700 ANSI Lumens (Normal), 2010 ANSI Lumens (Eco2)

Contrast Ratio

10,000:1

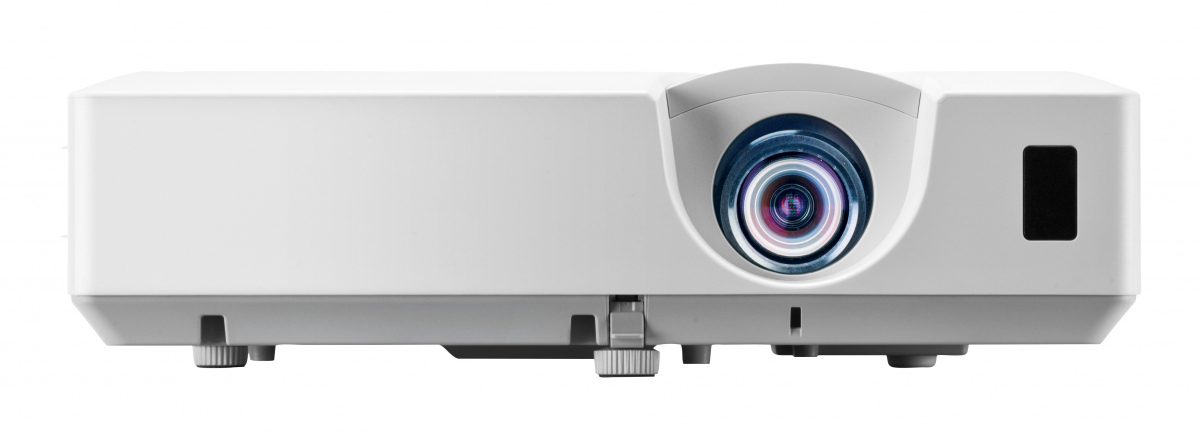

Lens

Manual Zoom x1.2, Manual Focus

Lamp Life

5,000 hours (Normal), 10,000 hours (Eco-2)

Lamp Wattage

225W

Focus distance

0.8m~9.0m (Wide), 1.0~10.8m (Tele)

Distance to Width ratio

1.5 (Wide), 1.8 (Tele)

Diagonal Display Size

40~200" (60"@2.2m / 16:9)

Number of colours

16.7 million colours

Computer compatibility

IBM Compatible VGA, SVGA, XGA, WXGA, SXGA, UXGA compressed, MAC 16"

Composite

NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

Component Video

525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)

HDMI

525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)

Plug & Play

DDC2B (VESA) for Computer in1, DDC2B (VESA) for HDMI1, HDMI2/MHL

Digital Keystone Correction

(Horizontal: +30 degree Vertical: +30 degrees)

Picture Adjustments

(Normal, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard,Equalizing Color temperature Adjustment, Equalizing Digital Gamma Correction, Daytime, Photo)

Basic Features

ASPECT selection Normal/4:3/16:9/16:10/14:9/Zoom/Native, Freeze, Audio pass through, Auto eco mode, Direct Power On, Magnify 4 times, PC-less Presentation, Mirror Reverse Image, Up-side Down Image, USB Display, Eco Mode, Auto Power Off, Auto signal search, Cloning

Advanced Features

Perfect Fit (4 corners and 4 sides), Accentualizer, HDCR, Audio pass through Audio sound mixing (MIC input and another audio signal input), Audio ports assign, Audio out (standby) and Monitor out / selectable source with MENU, Resolution setting,Source naming (in English), Security Lock ,PIN Security Lock, MyScreen Password Lock, Transition Detector, My Text, Password Lock, Key Lock (Key pad, Remote Control), Stand-by Audio, Audio sound mixing

Network

AMX Device Discovery, Command Control via the Network, Configuring and Controlling the Projector via a Web Browser, Controlling the Projector via Scheduling Crestron RoomView® (Not accessible through the wireless adapter), Displaying text data transferred via network, Extron XTP system, Failure and Warning Alerts via E-mail, My Image (still image transfer) Display, Network Bridge, Network Presentation (PC still picture transfer), Frame rate (practical) is under 12fps (640x480 movie) reference purpose only, PJLinkTM, Projector Management via SNMP

OSD Languages

33 Languages

Digital Input

HDMI/MHL x1, HDMI x1 (Supporting HDCP decoding)

Analog Input

15 pin D-Sub shrink x1 (shared with analog component video input), Analog Computer 2 15 pin D-Sub shrink x1 (shared with analog component video input and MONITOR OUT), RCA jack x1

Monitor Output

15 pin D-Sub shrink x1 (shared with COMPUTER IN 2 and analog component video input)

Audio Input

3.5 mm stereo mini jack x2, RCA jack(L, R) x1

Audio Output

3.5 mm stereo mini jack x1

Control

1 x 9-pin D-sub for RS-232C

USB

USB type A x2 Used for PC-less presentation or wireless network, Used for optional wireless pen tablet TB-1, USB type B x1 Used for Remote control mouse or PC screen display

Wireless LAN (Adapter not included) / Wired LAN

USB type-A / RJ45

Power Supply

AC 100~120 / 200~240V, 50 / 60Hz

Power Consumption/Standby

AC 100 - 120 V / AC 220 - 240 V (50/60 Hz), Current consumption 3.4 A / 1.7 A, Less than 0.5 W (@ saving mode)

Dimensions (W x H x D) (Without feet)

320 x 85 x 245mm

Weight

3.099 kg

Noise Level

37 db Normal, 29 db Eco

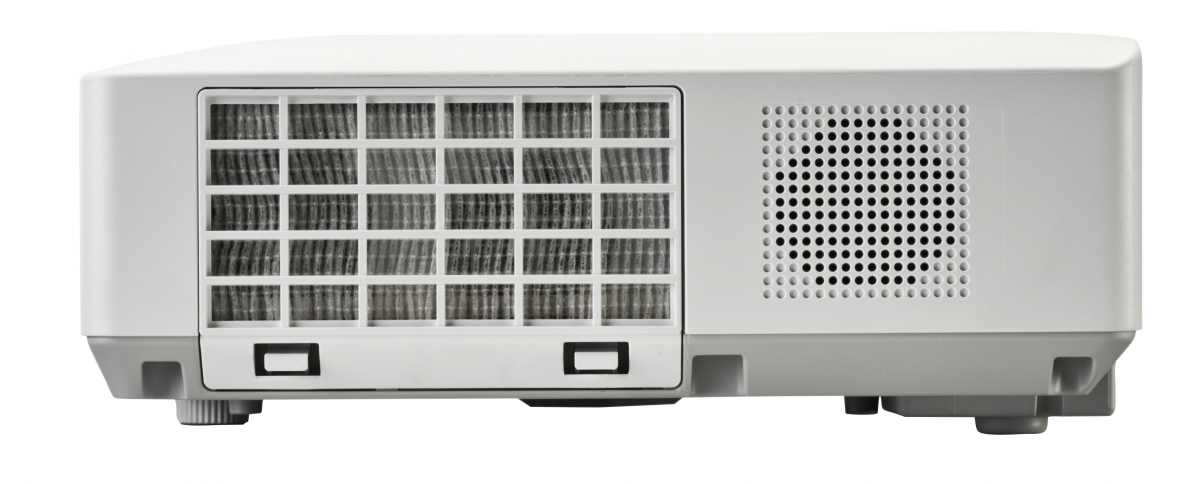

Air Filter

5,000 hours is the default, Unwoven filter

Accessories Supplied

Power cord EU model: Euro cord (1.8 m) x1 / US model: US cord (1.8m), Computer Cable (2 m) x1, IR Remote Control Unit x1, 'AA' Batteries x2, Lens cover x 1, Adapter Cover x1, Security Label x1, Application CD x1, User’s Manual CD (Operating Guide, Network Function, Safety Instructions, User’s Manual (Concise) x 1

Replacement lamp

DT01481

Filter

UX38841

USB wireless adapter

USB-WL-11N

Warranty

3 Years / 6 Months (for education and extended warranties please contact your local dealer.)
